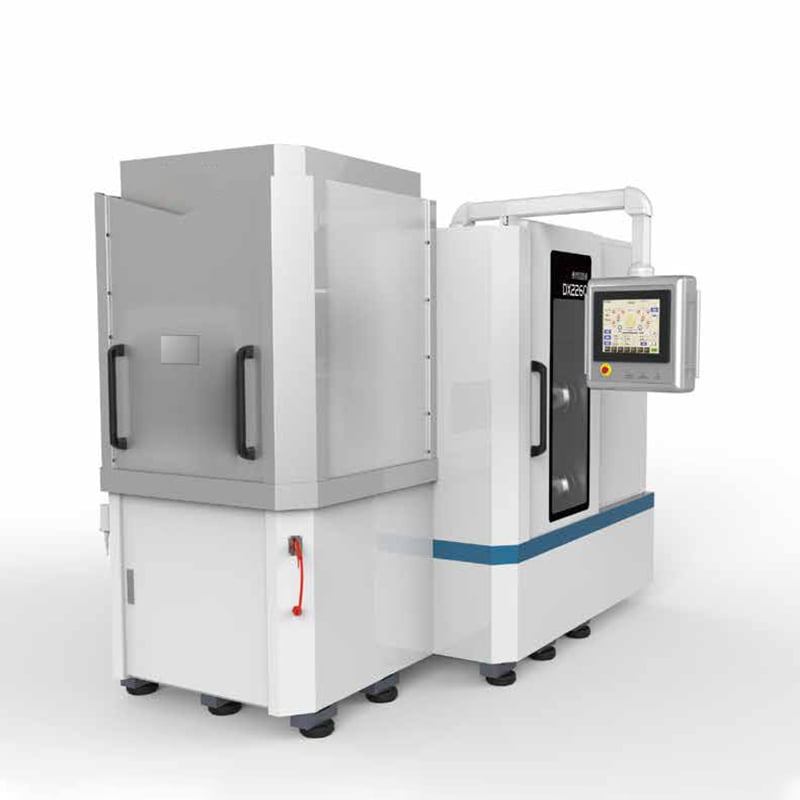

This series was adept in the task of finial size less than 8mm. The emergence of this series referenced to the advantages of the previous generation models. The casted frame ensured high-precision, more reliable and high efficiency.
| Item | Detail | Parameters |
| Ability | Max work size | 220mmX600mmX180mm |
| Roller | Component | Resin(PE or PU) |
| Workable diameter | 160mm≤Φd≤180mmx3 | |
| Wire | Diamond wire diameter | Φ0.12mm-Φ0.25mm |
| Storage | 30km(Φ0.25mm) | |
| Wire Running | Running speed | max1800m/min |
| Repeat rate | max 12 times/min | |
| Running direction | Bidirectional | |
| Workbench | Lift stroke | max 220mm |
| Lift speed | 0.1-999.9mm/hour | |
| Mortar&Fluid | Storage | 83L |
| Flow rate | 300L/min | |
| Control Devices | System | SIMENS |
| Touch screen&PLC&Motion controller | ||
| Motor Power | 9 Servo Motor | 78kW |
| Mortar Motor | 3kW | |
| Refrigerator | 3.5kW | |
| Power&Air Supply | Power | AC380V Three-phase four-wire system |
| Power consumption | ≤40 kW | |
| Air supply | Air pressure≥0.4Mpa | |
| Size&Weight | Size | 2210mm×3670mm×2640mm |
| Weight | 9500kg | |
