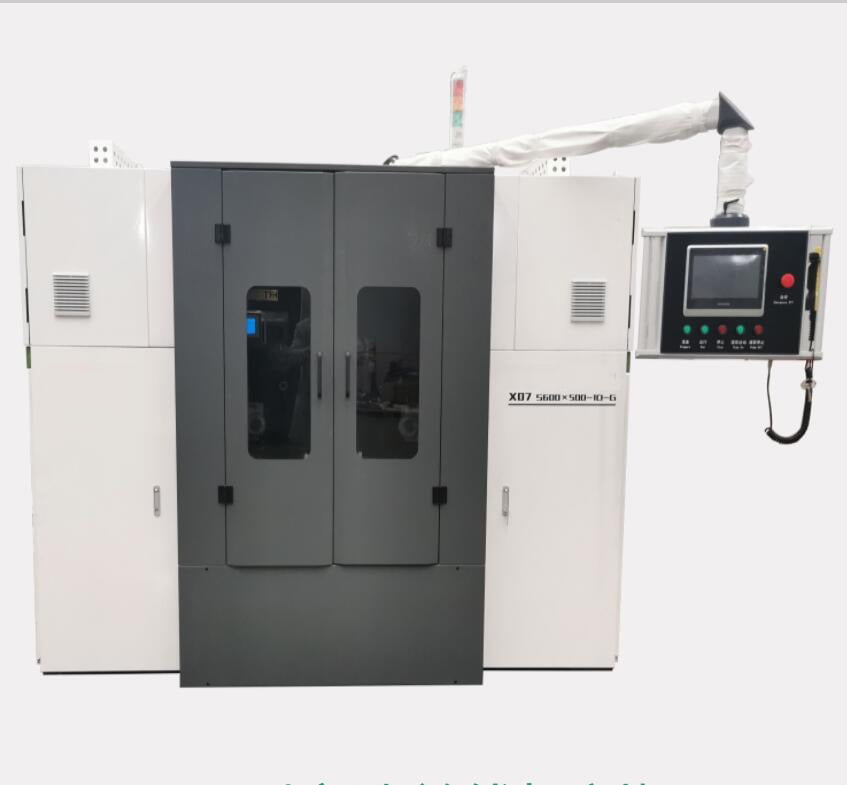

Da600

Single swing diamond wire saw

  • Model No.:DA600
  • Available Materials:silicon carbide, sapphire, quartz, ceramics ect.
  • Max Cutting Size:600mm(φ600mm)×500mm
  • Cutting Speed:0～9.99mm/min
Categories: , , , ,
Inquiry

Description

This series is mainly used for slicing of silicon carbide, sapphire, quartz, ceramics and other hard and brittle materials, especially for high-precision and high-efficiency processing of super-hard brittle materials and large-size materials such as cutting head,tail slicing and so on.The rotary table can be customized to meet the customer variety of needs for further production.

Cutting Samples

Features

  • Max wire running speed:1500m/min
  • Customized rotary table to meet further production
  • One-way or two-way cutting direction optional
  • The cutting wheel adopts servo drive to realize the straight advance and reciprocating swing of the cutting wheel, which improves the control accuracy and operation stability of the equipment.
  • The direct drive motor is adopted, and the motor axis is the rotating axis of the winding roller, which can avoid the dynamic imbalance caused by the middleware in the traditional structure, and reduce the noise and equipment line break rate

Technical Parameters

ItemDetailParameters
AbilityMax work size600*500(mm)
WireDiamond wire diameterΦ0.12mm~Φ0.35mm
Swing angle0~±12.5℃
Wire RunningRunning speedmax1500m/min
Repeat rate200mm/min
Running directionBidirectional or One-way
WorkbenchLift stroke650mm
Swing frequency6~30times/min
Lift speed0~9.99mm/min
Mortar&FluidStorage30L
Constant tension10.0N～45N.0
Control DevicesTesion Accuracy0～10%N
Touch screen&PLC&Motion controller
Motor PowerSliding stroke500mm
Tension Motor5.5kW
PowerPowerAC380V Three-phase five-wire system
Power consumption44.4kw
Size&WeightSize2680mm×1500mm×2150mm
Weight

36000kg
