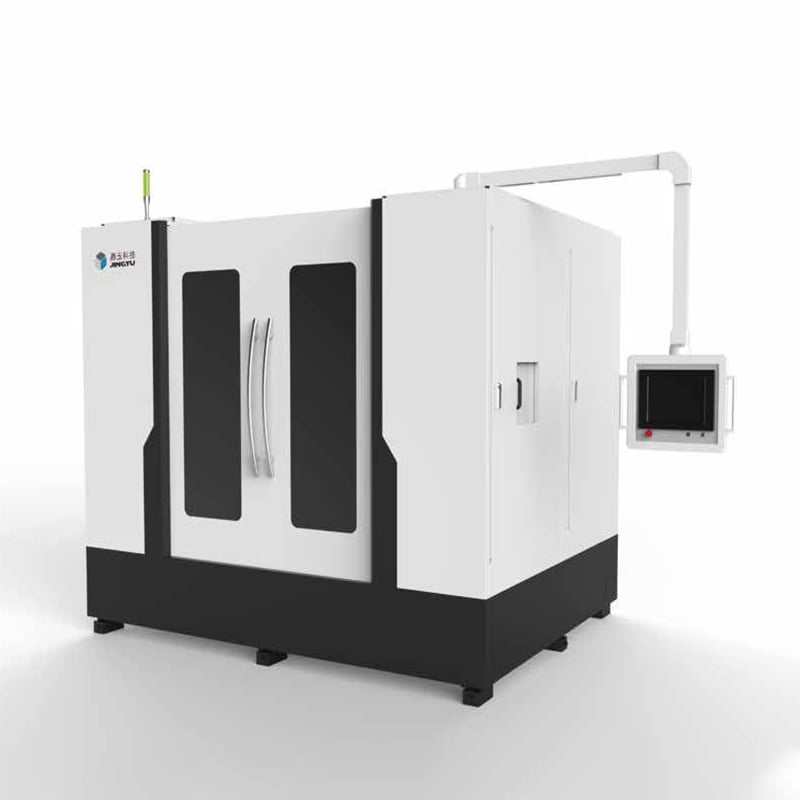

This series is mainly used to cut off brittle and hard materials with large specifications by diamond wire.The equipment has precision control system, each axis is controlled by servo bus, the cutting quality is stable, and the cutting cost is low.
| Item | Detail | Parameters |
| Ability | Max work size | 1000mmX1000mmX500mm |
| Wire | Diamond wire diameter | Φ0.25mm-Φ0.5mm |
| Storage | 20km(Φ0.25mm) | |
| Swing angle | ±30℃ | |
| Wire Running | Running speed | max1200m/min |
| Repeat rate | max 12 times/min | |
| Running direction | Bidirectional | |
| Workbench | Horizontal stroke | max 500mm |
| Lift speed | 0.1-999.9mm/hour | |
| Mortar&Fluid | Storage | 280L |
| Flow rate | 300L/min | |
| Control Devices | System | SIEMENS |
| Touch screen&PLC&Motion controller | ||
| Motor Power | 8 Servo Motor | 26 kW |
| Mortar Motor | 3.7kW | |
| Power | Power | AC380V Three-phase four-wire system |
| Power consumption | ≤26 kW | |
| Size&Weight | Size | 3250mm×2500mm×2950mm |
| Weight | 7500kg | |
