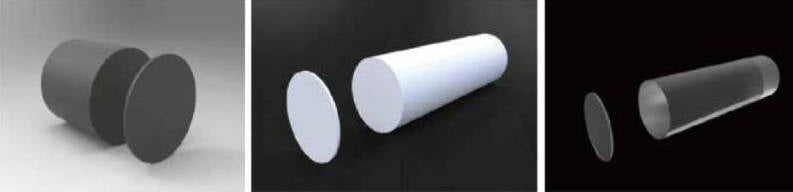

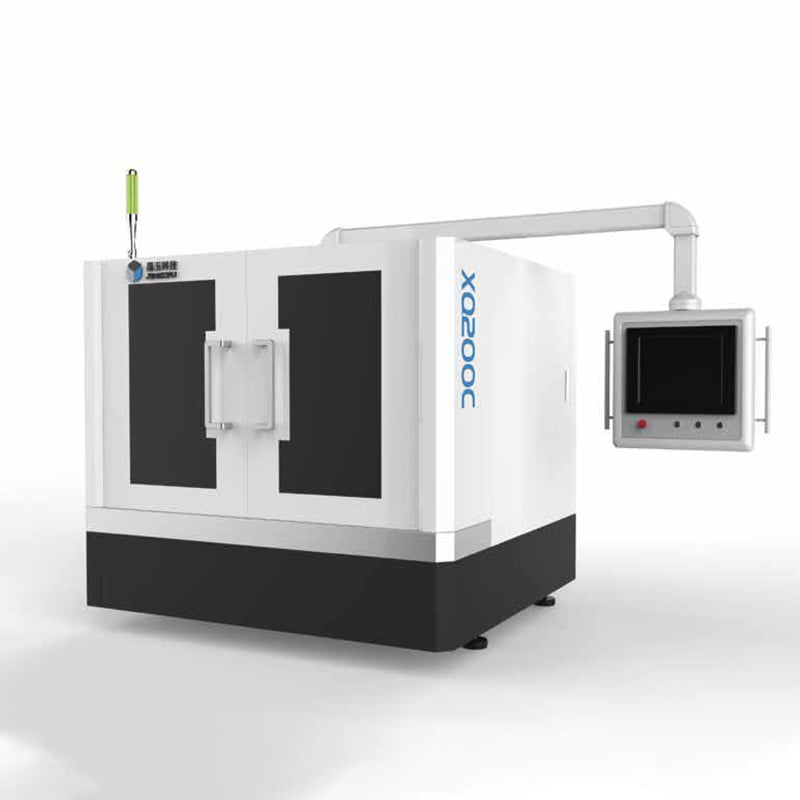

This series is mainly used for diamond wire cutting round brittle and hard materials.The equipment has precision control system, each axis is controlled by servo bus, the cutting quality is stable, and the cutting cost is low.
| Item | Detail | Parameters |
| Ability | Max work size | （Φ90-Φ200mm）X50mm |
| Wire | Diamond wire diameter | Φ0.25mm-Φ0.37mm |
| Storage | 10km(Φ0.25mm) | |
| Wire Running | Running speed | max1200m/min |
| Repeat rate | max 10 times/min | |
| Running direction | Bidirectional | |
| Workbench | Horizontal stroke | max 110mm |
| Cutting speed | max 300mm/min | |
| Lift speed | 0.1-999.9mm/hour | |
| Mortar&Fluid | Storage | 70L |
| Flow rate | 100L/min | |
| Control Devices | System | SIEMENS |
| Touch screen&PLC&Motion controller | ||
| Motor Power | 8 Servo Motor | 26 kW |
| Mortar Motor | 3.7kW | |
| Power | Power | AC380V Three-phase four-wire system |
| Power consumption | ≤15 kW | |
| Size&Weight | Size | 1765mm×1460mm×1630mm |
| Weight | 1500kg | |
