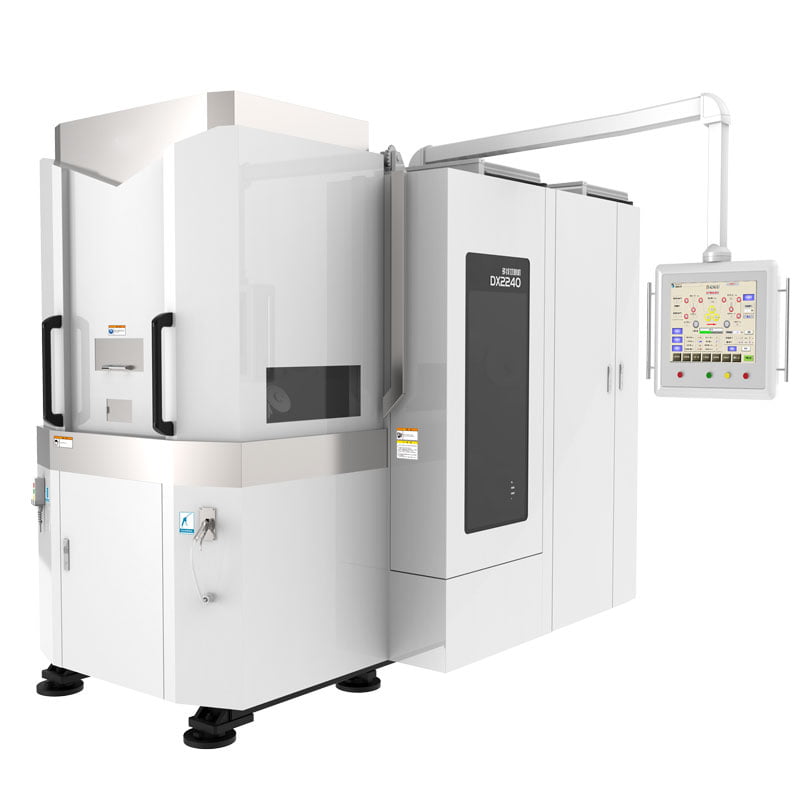

This series was adept in the task of final size less than 8mm with circle arc shape(R shape).the emergence of slicing R shape function subvert the traditional processing technique.The casted frame ensure high precision,more reliable and high efficiency.
| Item | Detail | Parameters |
| Ability | Max work size | 220mmX400mmX130mm |
| Thickness | 6mm | |
| R shape radius | >6mm | |
| R shape height | ≤25mm | |
| Roller | Component | Resin(PE or PU) |
| Workable diameter | 180mm≤Φd≤200mmx3 | |
| Wire | Steel wire diameter | Φ0.10mm-Φ0.18mm |
| Storage | 20kg | |
| Diamond wire diameter | Φ0.12mm-Φ0.25mm | |
| Storage | 50km(Φ0.25mm) | |
| Wire Running | Running speed | max1500m/min |
| Repeat rate | max 12 times/min | |
| Running direction | Bidirectional | |
| Workbench | Lift stroke | max 180mm |
| Lift speed | 0.1-999.9mm/hour | |
| Mortar&Fluid | Storage | 130L |
| Flow rate | 170L/min | |
| Control Devices | System | Phase |
| Touch screen&PLC&Motion controller | ||
| Motor Power | 8 Servo Motor | 60.72kW |
| Mortar Motor | 3kW | |
| Refrigerator | 3.5kW | |
| Power&Air Supply | Power | AC380V Three-phase four-wire system |
| Power consumption | ≤30 kW | |
| Air supply | Air pressure≥0.4Mpa | |
| Size&Weight | Size | 2040mm×2490mm×2665mm |
| Weight | 5500kg | |
