Description
This series was adept in the task of finial size less than 8mm with circular arc shape (R shape). The casted frame ensured high-precision, more reliable and high efficiency.
Cutting Samples

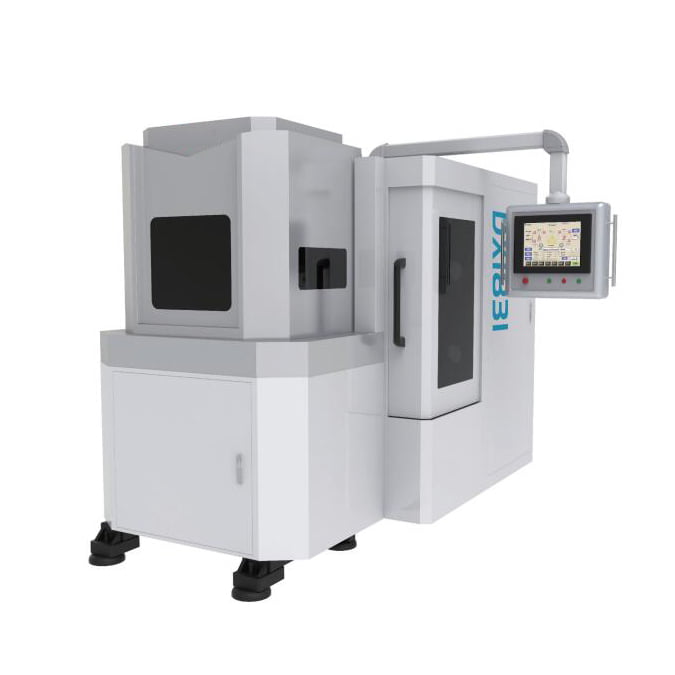

Magnet multi-wire saw
- Model No.:DS1831
- Available Materials:Magnetic brittle&hard materials
- Max Cutting size: 180mmX310mmX100mm
- Cutting Size:Straight flake&R shape
- Cutting Speed:max 1200m/min
Features
- Underside workbench:upward movement more efficient with low kerf loss
- Lower cost:two rollers reduce the running cost
- Less guides reduced to 8 pieces&Easy winding
- More quiet:Noise less than 75 decibel
- More smart:slicing coordination system with high precision cutting
- High speed:Max speed 1200m per min.
- Simply&Convenient operation
- Compact structure:One-piece Unit Structure
- Easy operation:the opening workspace makes operation easier.
- Fast install:Double cone for rollers and line wheels
Technical Parameters
| Item | Detail | Parameters |
| Ability | Max work size | 180mmX310mmX100mm |
| Thickness | ≤4 mm(Straight) | |
| Roller | Component | Resin(PE or PU) |
| Workable diameter | 140mm≤Φd≤160mmx3 | |
| Wire | Steel wire diameter | Φ0.10mm-Φ0.25mm |
| Storage | 20kg | |
| Diamond wire diameter | Φ0.13mm-Φ0.25mm | |
| Storage | 30km(Φ0.25mm) | |
| Wire Running | Running speed | max1200m/min |
| Repeat rate | max 12 times/min | |
| Running direction | Bidirectional | |
| Workbench | Lift stroke | max 120mm |
| Lift speed | 0.1-999.9mm/hour | |
| Mortar&Fluid | Storage | 83L |
| Flow rate | 170L/min | |
| Control Devices | System | Phase |
| Touch screen&PLC&Motion controller | ||
| Motor Power | 8 Servo Motor | 32.6kW |
| Mortar Motor | 3kW | |
| Refrigerator | 3.5kW | |
| Power&Air Supply | Power | AC380V Three-phase four-wire system |
| Power consumption | ≤25 kW | |
| Air supply | Air pressure≤0.4Mpa | |
| Size&Weight | Size | 2630mm×2030mm×2210mm |
| Weight | 4500kg | |
