Description
This series was design for the size under 4mm, and referenced to the advantages of the previous generation models. The casted frame ensured high-precision, more reliable and high efficiency.
Cutting Samples

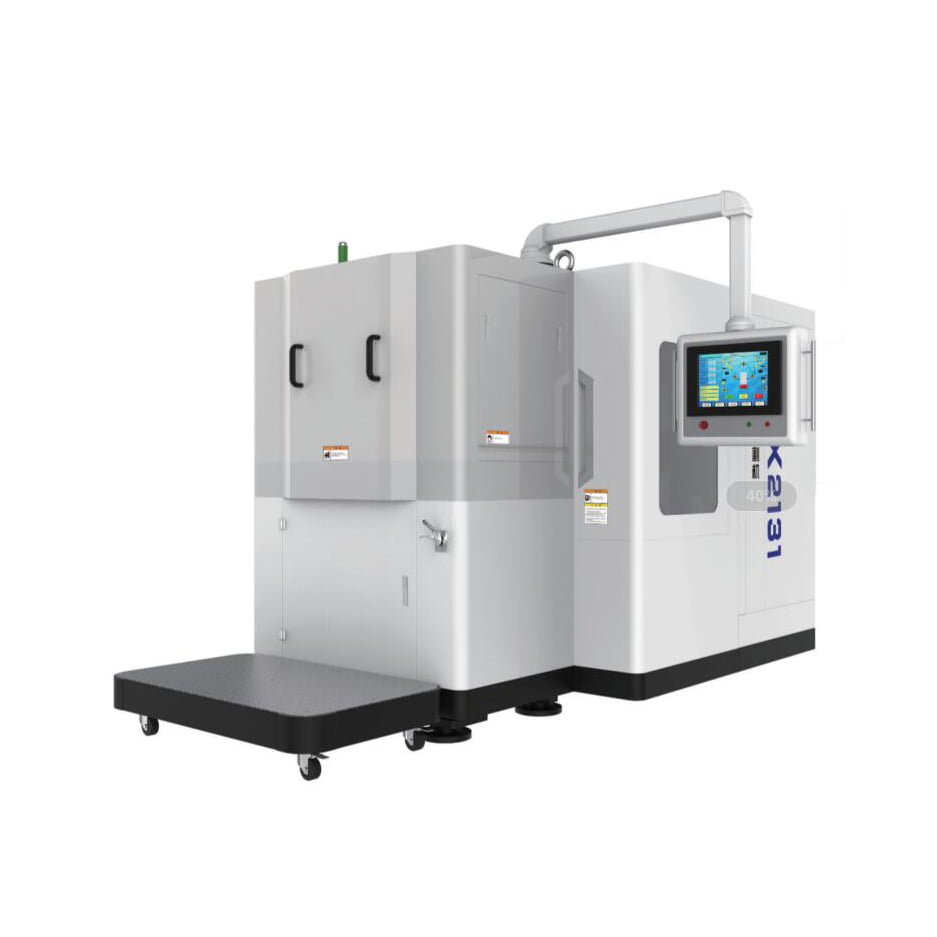

Ultrathin slicing diamond wire saw
- Model No.:DS2131
- Available Materials:under 4mm thickness brittle&hard materials
- Max Cutting Size:210mm×310mm×100mm
- Cutting Size:thinner Straight flake
- Running Speed:max 1000m/min
Features
- Underside workbench:upward movement more efficient with low kerf loss
- Fast operation:the opening workspace makes easily operation.
- Lower cost:two rollers reduce the running cost
- Less guides reduced to 8 pieces&Easy winding
- Noise quiet:less than 75 decibel
- More smart:slicing coordination system with high precision cutting
- High speed:Max speed 1000m per min.
- Simply&Convenient operation
- Compact structure:One-piece Unit Structure
- Fast install:double cone for rollers and line wheels
Technical Parameters
| Item | Detail | Parameters |
| Ability | Max work size | 210mmX310mmX100mm |
| Thickness | ≤4 mm | |
| Roller | Component | Resin(PE or PU) |
| Workable diameter | 160mm≤Φd≤180mmx2 | |
| Wire | Steel wire diameter | Φ0.10mm-Φ0.18mm |
| Storage | 20kg | |
| Diamond wire diameter | Φ0.13mm-Φ0.25mm | |
| Storage | 30km(Φ0.25mm) | |
| Wire Running | Running speed | max1000m/min |
| Repeat rate | max 12 times/min | |
| Running direction | Bidirectional | |
| Workbench | Lift stroke | max 110mm |
| Lift speed | 0.1-999.9mm/hour | |
| Mortar&Fluid | Storage | 83L |
| Flow rate | 170L/min | |
| Control Devices | System | YASKAWA |
| Touch screen&PLC&Motion controller | ||
| Motor Power | 8 Servo Motor | 33.2kW |
| Mortar Motor | 3kW | |
| Refrigerator | 3.5kW | |
| Power&Air Supply | Power | AC380V Three-phase four-wire system |
| Power consumption | ≤18 kW | |
| Air supply | Air pressure≥0.4Mpa | |
| Size&Weight | Size | 2040mm×2510mm×2250mm |
| Weight | 4500kg | |
