Description
This series is mainly used for slicing hard and brittle materials such as crystal,artificial gem, monocrystalline silicon, ceramics, glass, precious metals,magnetic materials, etc. It can also cut arc-shaped pieces.
Cutting Samples
Tile-shaped slicing wire saw

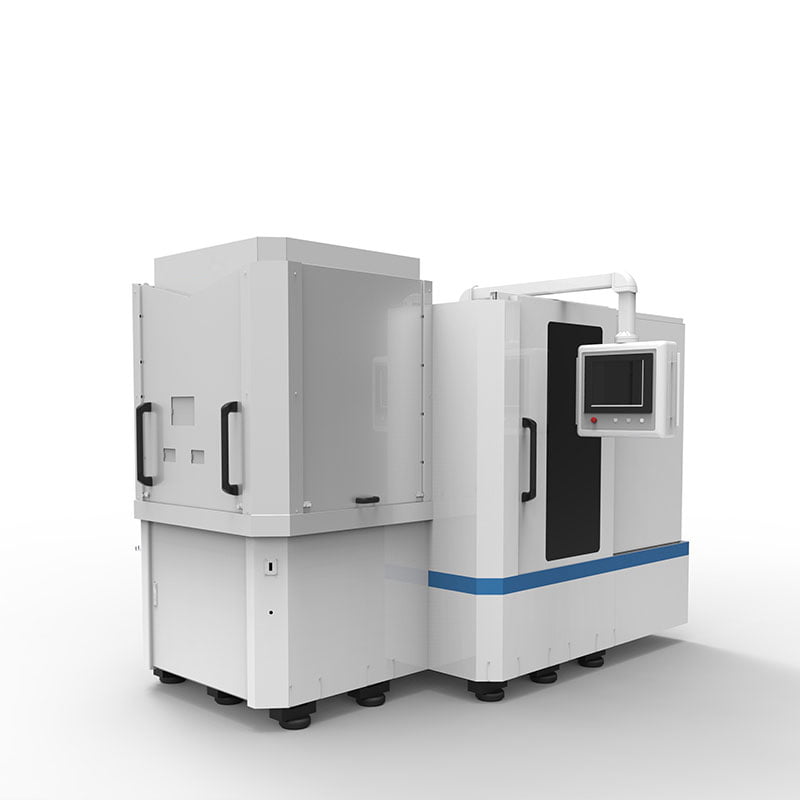

- Model No.:DS1160
- Available Materials:Sapphire, silicon carbide crystal, monocrystalline silicon, ceramics etc
- Max Cutting Size:110mmX600mmX130mmX2
- Cutting Size:Straight flake&R-shaped pieces
- Running Speed:max 1800m/min
Features
- Double station workbench:high cutting accuracy and cutting efficiency with low kerf loss
- Low consumption:total consumption less than 35KW
- Less guides reduced to 8 pieces&Easy winding
- Wire break memory system:high precision cutting
- High speed:Max speed 1800m per min.
- Simply&Convenient operation
- Compact structure:One-piece Unit Structure
- Much stable:the casted frame makes running environment stable
- Fast install:double core for rollers and line wheels.
Technical Parameters
| Item | Detail | Parameters |
| Ability | Max work size | 110mmX600mmX130mmX2 |
| Roller | Component | Resin(PE or PU) |
| Workable diameter | 140mm≤Φd≤160mmx4 | |
| Diamond wire diameter | Φ0.12mm-Φ0.25mm | |
| Storage | 30km(Φ0.25mm) | |
| Wire Running | Running speed | max1500m/min |
| Repeat rate | max 12 times/min | |
| Running direction | Bidirectional | |
| Workbench | Lift stroke | max 180mm |
| Lift speed | 0.1-999.9mm/hour | |
| Mortar&Fluid | Storage | 83L |
| Flow rate | 170L/min | |
| Control Devices | System | SIMENS |
| Touch screen&PLC&Motion controller | ||
| Motor Power | 9 Servo Motor | 53.2kW |
| Mortar Motor | 3.8kW | |
| Refrigerator | 3.5kW | |
| Power&Air Supply | Power | AC380V Three-phase four-wire system |
| Power consumption | ≤30 kW | |
| Air supply | Air pressure≤0.4Mpa | |
| Size&Weight | Size | 2110mm×3670mm×2640mm |
| Weight | 9600kg | |
