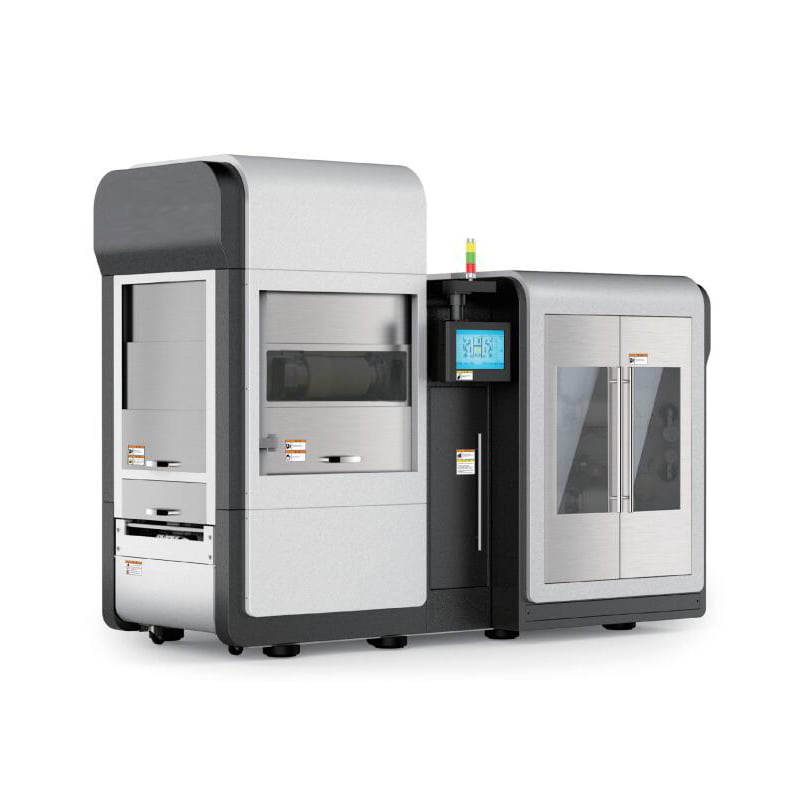

This series was redesign for slicing rod material which size under 6 inch. The fixed structure of rollers was improved, and it could save lots of time for install rollers. It added the independent heat exchange system and brand new method for power-off protection.
Cutting Samples
| Item | Detail | Parameters |
| Ability | Max work size | Φ160mmX340mm |
| Thickness | ≤5mm | |
| Roller | Component | Resin(PE or PU) |
| Workable diameter | 190mm≤Φd≤210mmx2 | |
| Wire | Diamond wire diameter | Φ0.15mm-Φ0.25mm |
| Storage | 50km(Φ0.25mm) | |
| Wire Running | Running speed | max1500m/min |
| Repeat rate | max 12 times/min | |
| Running direction | Bidirectional | |
| Workbench | Lift stroke | max 220mm |
| Swing angle | ±10° | |
| Lift speed | 0.1-999.9mm/hour | |
| Mortar&Fluid | Storage | 300L |
| Flow rate | 170L/min | |

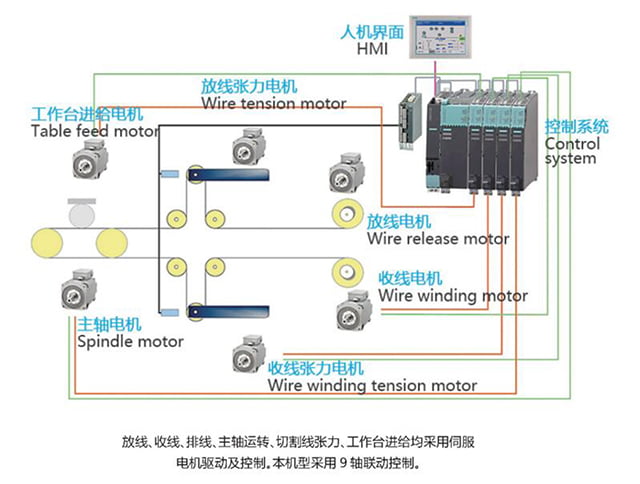

| Control Devices | System | SIEMENS |
| Touch screen&PLC&Motion controller | ||
| Motor Power | 8 Servo Motor | 55kW |
| Mortar Motor | 2.2kW | |
| Refrigerator | 3.5kW | |
| Power&Air Supply | Power | AC380V Three-phase four-wire system |
| Power consumption | ≤28 kW | |
| Air supply | Air pressure≤0.4Mpa | |
| Size&Weight | Size | 3210mm×1800mm×2600mm |
| Weight | 10000kg | |
